GB-1000i

Topcon is pleased to announce a new and powerful addition to GB families (New GB-1000i). The GB-1000i comes with direct data log into memory card and extra power port (2 External power port), this addition feature increase the productivity and efficiency in your work especially for GPS/GLONASS Reference station. Topcon’s new receivers bring advanced design to meet your positioning needs of today with built-in flexibility to meet the expanding needs of the future!

.

GB-1000i features:

  • Advanced Topcon dual-frequency
  • Dual-constellation
  • GPS+ receiver board design inside a rugged, compact housing.
  • Advanced Paradigm™ chip technology
  • Options Authorization Files (OAF’s)
  • Built in LCD display and operation panel

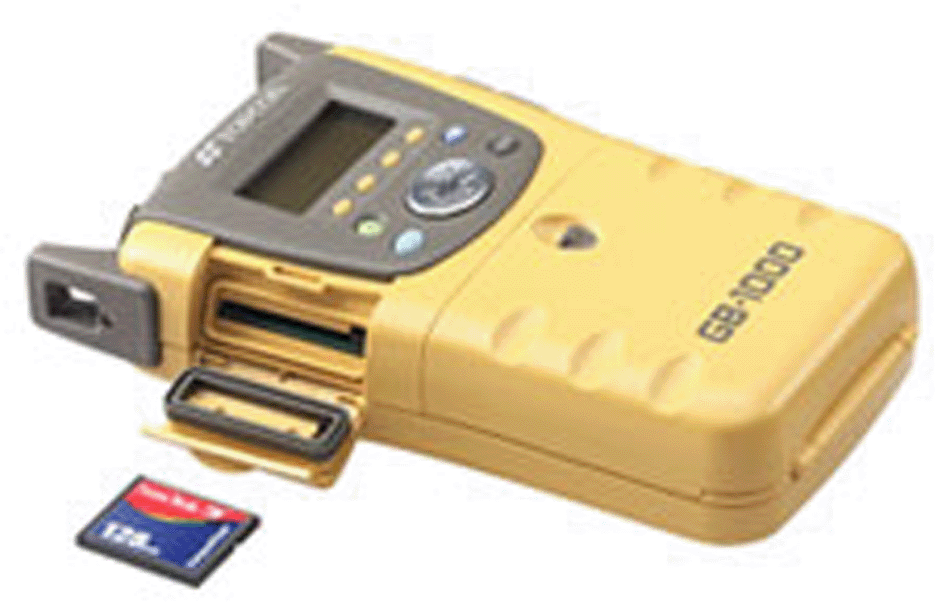

  • Compact- Flash memory card slot and advanced communication support
  • USB, serial, and Ethernet connections
  • Additional external power (2 External Power Port)
  • Data Logging into Internal Memory on direct to CF Memory Card

In the fast-paced world of GPS+ receiver technology, you need to rely on equipment that can grow with your business. With over 70 years of expertise in the precision measuring industry, Topcon designs and builds technology to meet the changing demands of our customers. Contact your local Topcon Distributor for more information or to arrange a demo. See for yourself why more and more professionals are choosing Topcon GPS+ technology over all the rest!

<GB-1000i Specification>
Tracking Specifications
Tracking Channels (standard) 40 L1 GPS (20 GPS L1+L2 on Cinderella* days)
Tracking Channels (optional) 20 GPS L1+L2, GLONASS
Signals Tracked  L1/L2, C/A, P-Code, Full Cycle Carrier
Measurement Modes Static/Rapid Static, RTK Kinematic
(Continuous mode and Stop & Go Mode)
Performance Specifications -
Static, Rapid Static Horizontal: 3mm+ 0.5ppm (x baseline length)
Vertical: 5mm+ 0.5ppm (x baseline length)
RTK Horizontal: 10mm+ 1.0ppm
Vertical: 15mm+ 1.0ppm
Power Specifications

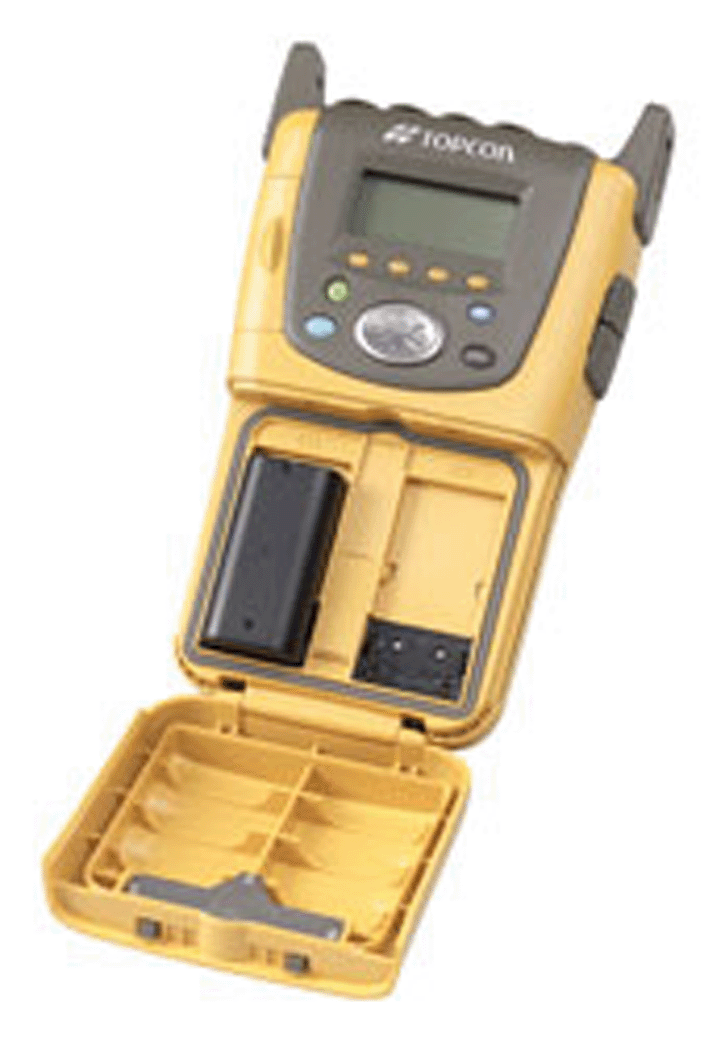

Power Supply Removable Li-Ion Internal (hot swappable)
Optional External
Operating Time (2x Internal Batteries) 9 hours (GB-500), 7 hours (GB-1000)
Battery Charger Integrated and External
Smart Power Management Auto Data Logging / Resuming after power failure/ Interruption at Reference Station
Physical Specifications
Dimensions 150 x 257 x 63 (mm)
Size 1.0 kg (without batteries)
Weight 1.2 kg (with 2 internal batteries)
Antenna External
Tripod Clip Standard Attachment
Modem Optional External
Environmental Specifications
Operating Temperature -20C° ~ +55C° / -4F° ~ +131F°
Waterproof Rating IP66
Humidity 95%
I/O- Panel specifications
Ports 3 Serial Ports, 1 USB
1 Ethernet (10BASE-T)
2 Ext Power , 1 Antenna
Serial Speed Max 460,800
Optional I/O signals/ports 1-PPS, 1-Event
Control Panel
User Interface 160x64 dot LCD
20 Char x 4 Line
Buttons 9 Buttons
(Power, 4-Direction Cursor ESC, ENTER, MENU, 4-Function keys)
Memory & Recording
Raw Data Memory Internal Memory
Selectable: 4MB to 1GB Compact Flash Card Slot – Type 2
Additional Memory Logging Intervals Up to 20 times per second (20 Hz)
Direct data log into memory card
RTK
Ambiguity Initialization OTF
Communication Formats CMR+, CMR, RTCM 2.3, TPS
Multi Base RTK Supported
