- Luminance Meter
-
The measurement time is greatly shortened. SR-3 can be measured even with a dark sample of 1 cd/m2 or less in about 30 seconds.
-
The new optics system canceled the polarized light error in all wavelength region. (5% or less)
-
Slight light can be measured in high accuracy.(Measuring field 2°, Standard light source A, Accuracy is guaranteed up to 0.5 cd/m2.)
-
The measuring field can be changed by four kinds. (2°/ 1° / 0.2° / 0.1°) All samples can be measured. (Example : Cold Cathode Fluorescent Lamps to Large screen )
-
Application software (CS-900) for Windows is the standard attached.
-
The blinking light such as CRT can be accurately measured, too. Because, SR-3 can do the synchronizing measurement.
-
Four adjustable measuring fields (0.1° ,0.2° ,1 ° ,2°) are selectable for all types of samples.
-
Designed for maximum sensitivity in measuring spot to average luminance.
-
The luminance, chromaticity, color temperature, CIELAB, CIELUV, and color difference are measured, and displayed at once.
-
Because the standard interface is built in, measurements can be performed automatically making it very suitable for inline use. (Please specify GP-IB/RS-232C during purchase)
-
Analog output enables continuous measurement.
-
BM-5A offers high sensitivity by utilizing a Photo-multiplier sensor.
-
BM-7 is a general standard type, and the BM-7FAST enables high-speed measurement.
-
This is a multi function luminance meter, pocket-sized and low cost, measuring angle have three selections, 0.2°, 1°and 2°
-
Wide range measurement with high accuracy, 0.01 to 199,900cd/m(2°type) .
-
Using RS-232C output and the measuring mode select function, it can easily be used for an in-line application.
-
When using the optional extension cable, the detector and display unit can be placed apart.
-
The keyboard unit (optional) expands the range of application. (Deviation, percentage, integral luminance)
Spectroradiometer SR-3
Specification
| Wavelength range | 380nm to 780nm | |
| Resolution of wavelength | 1nm | |
| Measuring range | 0.5 to 300,000cd/m2 (Standard light source A) | |
| Measuring field | 2° / 1° / 0.2° / 0.1° Switching | |
| Wavelength accuracy | ±0.3nm ( In a specific Hg line ) | |
| Accuracy | Luminance : ±2 % Chromaticity : ±0.002 ( Standard light source A ) |
|
| Minimum measuring dia. | 0.5 mm dia. Standard 0.1 mm dia. With AL-6 (Optional lens) 0.06 mm dia. With AL-11 (Optional lens) |
|
| Measuring time | 1 to 31 seconds (Without communication time) | |
| Measuring functions | Spectral Radiance[Le], Luminance[Lv], Chromaticity[x,y,u',v'], Tristimulus values[X,Y,Z], Correlated color temperature[Tc], Deviation[duv], The Colorimetric system can be changed to 2° and 10° . |
|
| Interface | RS-232C |
Specification
Type |
BM-5A |
BM-7/7F |
|
Measuring range |
0.0001 to |
0.01 to |
|
Measuring field |
2°/1°/0.2°/0.1° |
||
Accuracy |
Luminance |
±4% of reading(Standard light source A) |
|
Chromaticity |
±0.005 |
±0.002 |
|
Minimum measuring dia. |
0.49mm dia. |
||
Measuring time |
Approx. 2 sec |
Approx. 2 sec (BM-7) |
|
Output |
Digital |
RS-232C or GP-IB |
|
Analog |
Proportioned to X2,Y and Z |
||

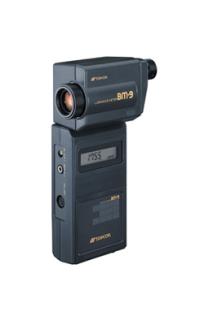

Luminance meter BM-9
Specification
Head Type |
BM-920D |
BM-910D |
BM-902D |
|
Measuring range |
0.01 to 199,900 cd/m2 |
0.1 to 1,999,000 cd/m2 |
1 to 19,990,000 cd/m2 |
|
Measuring field |
2° |
1° |
0.2° |
|
Luminance Accuracy |
±4% of reading ±1 digit |
|||
Minimum measuring dia. |
9.5mm dia. |
4.8mm dia. |
0.95mm dia. |
|
Measuring time |
Approx. 0.5 sec |
|||
Output |
Digital |
RS-232C |
||
Analog |
0 to 3Vmax. |
|||
